ইলেকট্রিক কোর ড্রিল রিগ মেশিন 20KN ক্রলার ব্লাস্টিং ইঞ্জিনিয়ারিং হোলের জন্য মাউন্ট করা হয়েছে

1Set/Sets
MOQ
Negotiation
মূল্য
ইলেকট্রিক কোর ড্রিল রিগ মেশিন 20KN ক্রলার ব্লাস্টিং ইঞ্জিনিয়ারিং হোলের জন্য মাউন্ট করা হয়েছে
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
উৎপত্তি স্থল: জিয়াংসু, চীন (মূল ভূখণ্ড)
প্রকার: অ্যাঙ্কর ড্রিলিং রিগ
রঙ: কাস্টম তৈরি করা যেতে পারে
পরিচিতিমুলক নাম: tysim
নাম: ব্লাস্টিং ইঞ্জিনিয়ারিং হোলের জন্য বৈদ্যুতিক ক্রলার মাউন্ট করা ড্রিল রিগ
লক্ষণীয় করা:

বৈদ্যুতিক কোর ড্রিল রিগ মেশিন

,

20KN কোর ড্রিল রিগ মেশিন

,

ক্রলার মাউন্ট করা ড্রিল রিগ মেশিন

মৌলিক তথ্য
উৎপত্তি স্থল: Jiangsu, চীন
পরিচিতিমুলক নাম: TYSIM
সাক্ষ্যদান: ISO9001:2008
Model Number: GXYL-1
প্রদান
Packaging Details: In 40′container with drilling tools
Delivery Time: One month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: five set per month
পণ্যের বর্ণনা

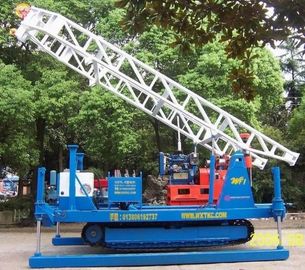

Electric Crawler Mounted Drill Rig For Blasting Engineering Hole



Quick Detail:



1. GXYL-1 drilling has large input power and output torque. Its drilling capacity is strong. Its capacity of dealing with accidents is good. It has an oil pressure feeding structure and its labour intensity is low.

2.The drilling rig has various chassis mode like skid mounted, crawler mounted.

3. The drill and the pump are transmitted separately, improving the output torque and avoiding the accidents in the hole.

4. Oening the clinostat, it is easy to lift and loose the drill.



Description:



1. GXYL-1 is a spindle type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blasting engineering hole, inspecting hole of various concrete stucture, etc.

2. According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.

3.The drilling rig has various chassis mode like skid mounted, crawler mounted.

4.The drill is convenient for maintenance and repair for simple structure and reasonable layout.

5. Opening the clinostat, it is easy to lift and loose the drill.



Applications:



1.Engineering geological exploration.

2. Survey and exploration of solid mineral deposit.

3.Blasting engineering hole.

4.Inspecting hole of various concrete stucture.



Specifications:



Hole depth 50m Rod dia 150mm
Hole depth 150m Rod dia 76mm

Hole angle(°)

360°
Spindle speed Forward speed:61;163;338;654rpm
Reverse speed:45rpm
Stroke of spindle 500mm
Max .lifting capacity 25KN
Max .feeding capacity 20KN

Max .distance from the spindle lower to the earth surface

600mm
Hoist

Max .lifting capacity

(single line):

15KN
Lifting speed: 0.2;0.52;1.05;2.06m/s
Power Electric motor: 11kw,2200rpm
Diesel engine S1100 or S1100M
Weight 500kg
Dimensions (L×W×H) 1450×970×1280mm
